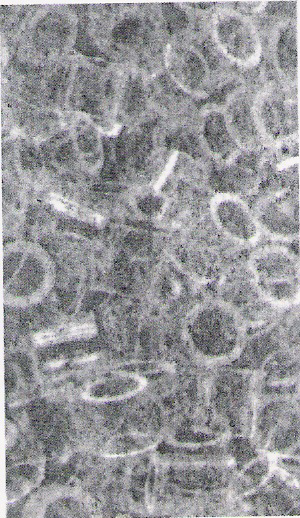

COLUMN PACKING - RASCHIG RINGS
Raschig rings upto 25mm are of Neutral glass. 40mm and 50mm raschig rings are available only in Borosilicate glass.
Cat. Ref. |
Size |
Bulk Density Kg/Ltr |
Specific Surface m2/m3 |
Glass |
FC9 |
9x9 |
0.6 |
500 |
Neutral |
FC12 |
12x12 |
0.5 |
400 |
Neutral |
FC15* |
15x15 |
0.4 |
300 |
Neutral |
FC25* |
25x25 |
0.3 |
200 |
Neutral |
FCB40 |
40x40 |
0.3 |
160 |
Borosilicate |
FCB50 |
50x50 |
0.32 |
120 |
Borosilicate |
| |
Packings require for various pipe sections (Kgs.)
|
Packing size |
Pipe Section |
Vol (L) |
FC9 |
FC12 |
FC15 |
FC25 |
FCB40 |
FCB50 |
PS3/1000 |
5 |
3 |
3 |
2 |
- |
- |
- |
PS4/1000 |
8 |
- |
4 |
3 |
3 |
- |
- |
PS6/1000 |
18 |
- |
9 |
7 |
7 |
- |
- |
PS9/1000 |
37 |
- |
- |
15 |
15 |
15 |
- |
PS12/1000 |
66 |
- |
- |
17 |
30 |
25 |
- |
PS16/1000 |
125 |
- |
- |
- |
65 |
50 |
53 |
PS18/1000 |
165 |
- |
- |
- |
90 |
65 |
70 |
PS24/1000 |
295 |
- |
- |
- |
- |
115 |
125 |
| |
Notes of use of Column Packing
-
Due to their low bulk densities, Glass Raschig rings are particularly suitable for packing glass columns.
-
Generally, the ratio of Column diameter to packing diameter should not be less than 8:1
-
When using smaller packing size, a small layer of larger packing should be used on packing support, to prevent the smaller packing falling through.
-
In vacuum application and applications involving high vapour velocities, packing may be lifted and may damage to other parts. To prevent this, a packing retainer (PTFE perforated plates) should be used above the packed section.
* marked items are available fast.
|
